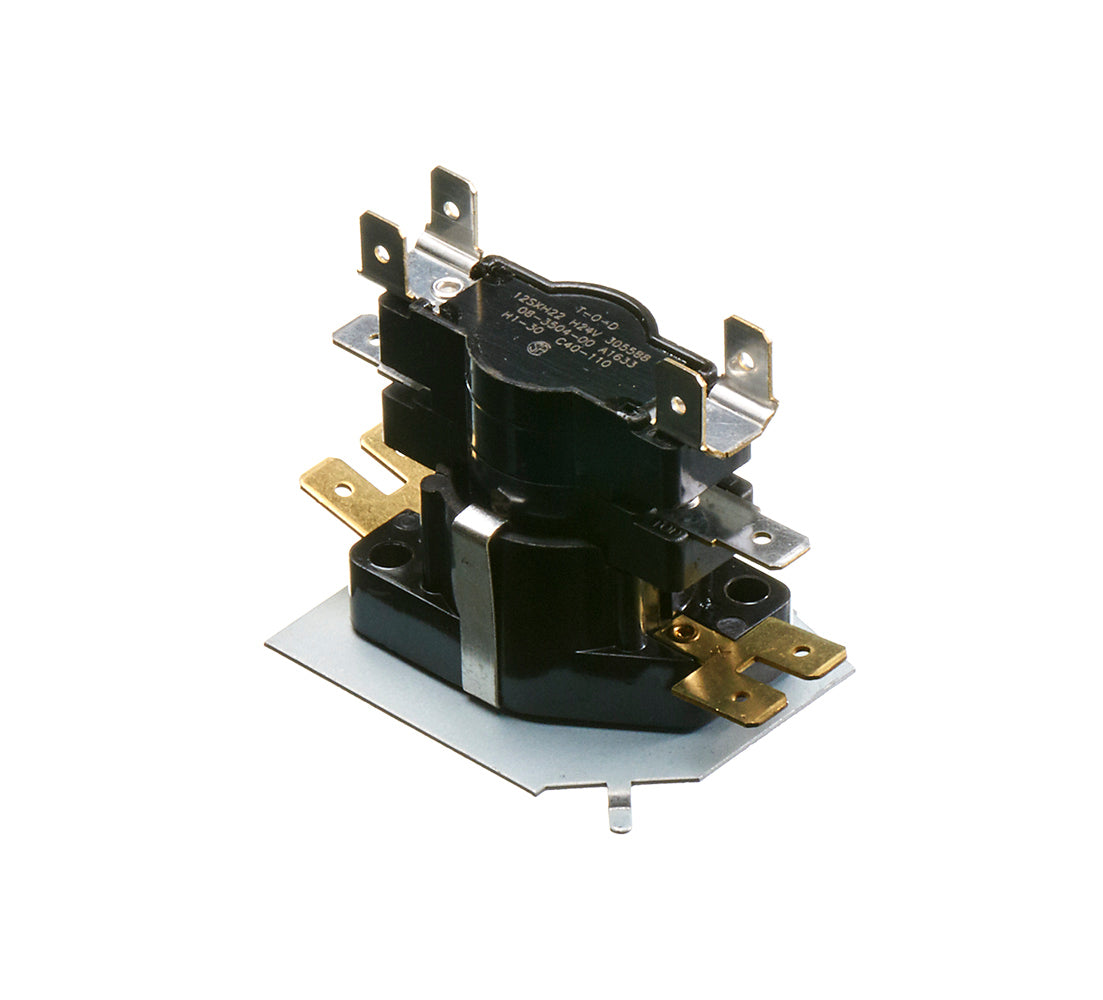

Heat Sequencing Relay - 24V DPST - NO 2 POLE 1-30/1-30

Heat Sequencing Relay - 24V DPST - NO 2 POLE 1-30/1-30

Model #: MLPD425118

• HVAC Sequencing Relay
• Mounting: Flush Mount Plate w/Mounting Hole and Tab
• Heater Wattage / Power Consumption: 24 VAC/.10A -.18A steady state/.35 - 1.0 amps peak for 0.8 sec.
• Heater Voltage (V): 24
• Contact Configuration: DPST - NO
• No. of Poles: 2
• On Timing - Pole 1 (seconds): 1-30
• On Timing - Pole 2 (seconds): 1-30
• Off Timing - Pole 1 (seconds): 40-110
• Off Timing - Pole 2 (seconds): 40-110
• Connections: 1/4 in. Quick Connects
• Motor FLA at 120V (A): Pole 1: 14 Pole 2: 14
• Motor LRA at 120V (A): Pole 1: 72 Pole 2: 72
• Pilot Duty Rating at 120V (VA): Pole 1: 125 Pole 2: 125
• Resistive Rating at 120V (A): Pole 1: 25 Pole 2: 25
• Motor FLA at 230V (A): Pole 1: 7 Pole 2: 7
• Motor LRA at 230V (A): Pole 1: 42 Pole 2: 42
• Pilot Duty Rating at 230V (VA): Pole 1: 125 Pole 2: 125
• Resistive Rating at 230V (A): Pole 1: 25 Pole 2: 25
• Motor FLA at 460V (A): Pole 1: 4 Pole 2: 4
• Motor LRA at 460V (A): Pole 1: 24 Pole 2: 24
• Pilot Duty Rating at 460V (VA): Pole 1: 125 Pole 2: 125
• Resistive Rating at 460V (A): Pole 1: 12.5 Pole 2: 12.5

Technical Data
Spec Sheet
Installation Instructions/Parts/Warranty

Vendor Information (Permission Required)

Cross Reference

*Please note: We've done our best to identify the most similar products on the market that could cross to our quality Mainline product. The below products are not necessarily an exact match and could change at any time without warning.

•FAST PARTS:1056789
•GLOBAL:24ZC-3
•MARS:33244; 33844
•PACKARD:HS24A34-3
•RHEEM/PROTECH:425072; PD425118
•SUPCO:Q103
•WHITE-RODGERS:24A34-3
