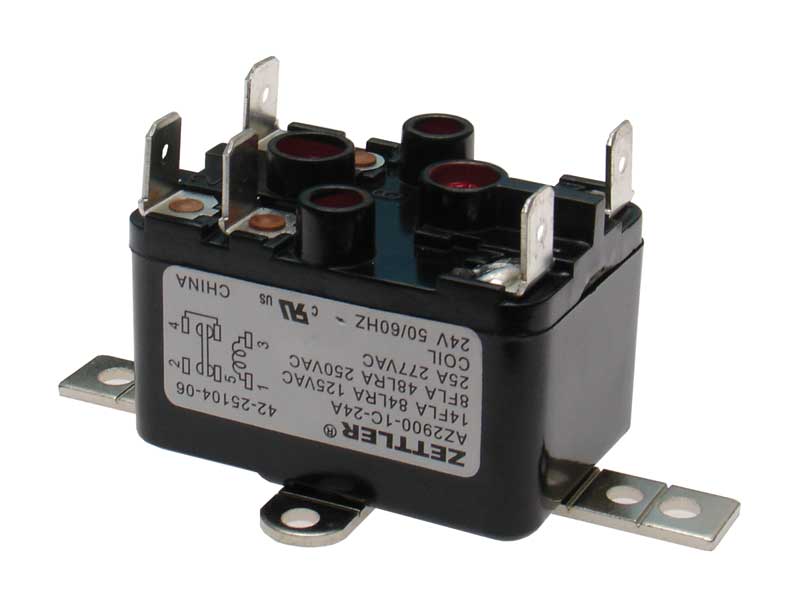

Relay - Sealed Case SPDT-NO/NC 24VAC Coil

Relay - Sealed Case SPDT-NO/NC 24VAC Coil

Model #: ML42-25104-06

• HVAC Control Relay
• Sealed Case
• Contact Configuration: SPDT
• Contact Bias: NO / NC
• Coil Voltage (VAC): 24
• Coil Frequency (Hz): 50/60
• FLA at 120V (A): 14
• FLA at 230V (A): 8
• LRA at 120V (A): 84
• LRA at 230V (A): 48
• Resistive Rating at 277V (A): 25
• Terminal Connections: 1/4 in. Quick Connects

Technical Data
Spec Sheet
Installation Instructions/Parts/Warranty

Vendor Information (Permission Required)

Cross Reference

*Please note: We've done our best to identify the most similar products on the market that could cross to our quality Mainline product. The below products are not necessarily an exact match and could change at any time without warning.
