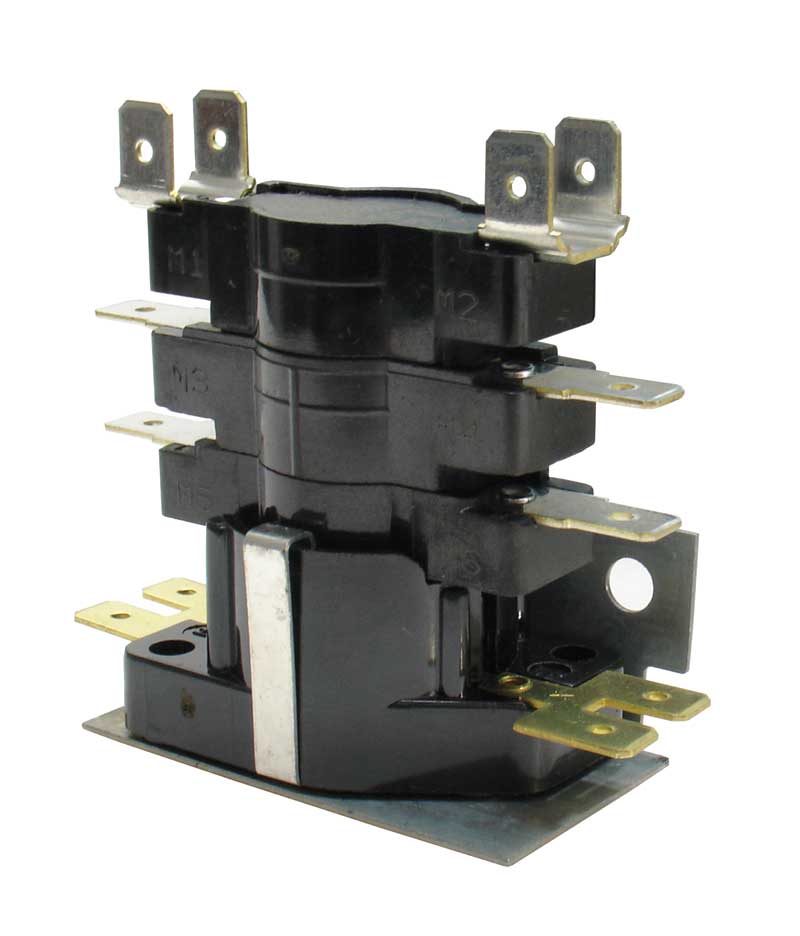

Heat Sequencing Relay - 24V TPST - NO 3 POLE 10-30/10-30/10-30
Heat Sequencing Relay - 24V TPST - NO 3 POLE 10-30/10-30/10-30

Heat Sequencing Relay - 24V TPST - NO 3 POLE 10-30/10-30/10-30

Model #:


• HVAC Sequencing Relay
• Mounting: Angle Bracket WITH Two Mounting Holes
• Heater Wattage/ Power Consumption: 24 VAC / 0.2A steady state / 0.55A maximum
• Heater Voltage (V): 24
• Contact Configuration: TPST - NO
• No. of Poles: 3
• On Timing - Pole 1 (seconds): 10-30
• On Timing - Pole 2 (seconds): 10-30
• On Timing - Pole 3 (seconds): 10-30
• Off Timing - Pole 1 (seconds): 90-150
• Off Timing - Pole 2 (seconds): 30-60
• Off Timing - Pole 3 (seconds): 30-60
• Connections: 1/4 in. Quick Connects
• Motor FLA at 120V (A): Pole 1: 7 Pole 2: 7 Pole 3: 7
• Motor LRA at 120V (A): Pole 1: 42 Pole 2: 42 Pole 3: 42
• Pilot Duty Rating at 120V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
• Resistive Rating at 120V (A): Pole 1: 25 Pole 2: 25 Pole 3: 25
• Motor FLA at 230V (A): Pole 1: 7 Pole 2: 7 Pole 3: 7
• Motor LRA at 230V (A): Pole 1: 42 Pole 2: 42 Pole 3: 42
• Pilot Duty Rating at 230V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
• Resistive Rating at 230V (A): Pole 1: 25 Pole 2: 25 Pole 3: 25
• Motor FLA at 460V (A): Pole 1: 3 Pole 2: 3 Pole 3: 3
• Motor LRA at 460V (A): Pole 1: 18 Pole 2: 18 Pole 3: 18
• Pilot Duty Rating at 460V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
• Resistive Rating at 460V (A): Pole 1: 12.5 Pole 2: 12.5 Pole 3: 12.5


• HVAC Sequencing Relay
• Mounting: Angle Bracket WITH Two Mounting Holes
• Heater Wattage/ Power Consumption: 24 VAC / 0.2A steady state / 0.55A maximum
• Heater Voltage (V): 24
• Contact Configuration: TPST - NO
• No. of Poles: 3
• On Timing - Pole 1 (seconds): 10-30
• On Timing - Pole 2 (seconds): 10-30
• On Timing - Pole 3 (seconds): 10-30
• Off Timing - Pole 1 (seconds): 90-150
• Off Timing - Pole 2 (seconds): 30-60
• Off Timing - Pole 3 (seconds): 30-60
• Connections: 1/4 in. Quick Connects
• Motor FLA at 120V (A): Pole 1: 7 Pole 2: 7 Pole 3: 7
• Motor LRA at 120V (A): Pole 1: 42 Pole 2: 42 Pole 3: 42
• Pilot Duty Rating at 120V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
• Resistive Rating at 120V (A): Pole 1: 25 Pole 2: 25 Pole 3: 25
• Motor FLA at 230V (A): Pole 1: 7 Pole 2: 7 Pole 3: 7
• Motor LRA at 230V (A): Pole 1: 42 Pole 2: 42 Pole 3: 42
• Pilot Duty Rating at 230V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
• Resistive Rating at 230V (A): Pole 1: 25 Pole 2: 25 Pole 3: 25
• Motor FLA at 460V (A): Pole 1: 3 Pole 2: 3 Pole 3: 3
• Motor LRA at 460V (A): Pole 1: 18 Pole 2: 18 Pole 3: 18
• Pilot Duty Rating at 460V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
• Resistive Rating at 460V (A): Pole 1: 12.5 Pole 2: 12.5 Pole 3: 12.5

Technical Data
Spec Sheet
Installation Instructions/Parts/Warranty

• HVAC Sequencing Relay
• Mounting: Angle Bracket WITH Two Mounting Holes
• Heater Wattage/ Power Consumption: 24 VAC / 0.2A steady state / 0.55A maximum
• Heater Voltage (V): 24
• Contact Configuration: TPST - NO
• No. of Poles: 3
• On Timing - Pole 1 (seconds): 10-30
• On Timing - Pole 2 (seconds): 10-30
• On Timing - Pole 3 (seconds): 10-30
• Off Timing - Pole 1 (seconds): 90-150
• Off Timing - Pole 2 (seconds): 30-60
• Off Timing - Pole 3 (seconds): 30-60
• Connections: 1/4 in. Quick Connects
• Motor FLA at 120V (A): Pole 1: 7 Pole 2: 7 Pole 3: 7
• Motor LRA at 120V (A): Pole 1: 42 Pole 2: 42 Pole 3: 42
• Pilot Duty Rating at 120V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
• Resistive Rating at 120V (A): Pole 1: 25 Pole 2: 25 Pole 3: 25
• Motor FLA at 230V (A): Pole 1: 7 Pole 2: 7 Pole 3: 7
• Motor LRA at 230V (A): Pole 1: 42 Pole 2: 42 Pole 3: 42
• Pilot Duty Rating at 230V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
• Resistive Rating at 230V (A): Pole 1: 25 Pole 2: 25 Pole 3: 25
• Motor FLA at 460V (A): Pole 1: 3 Pole 2: 3 Pole 3: 3
• Motor LRA at 460V (A): Pole 1: 18 Pole 2: 18 Pole 3: 18
• Pilot Duty Rating at 460V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
• Resistive Rating at 460V (A): Pole 1: 12.5 Pole 2: 12.5 Pole 3: 12.5

Technical Data
Spec Sheet
Installation Instructions/Parts/Warranty
