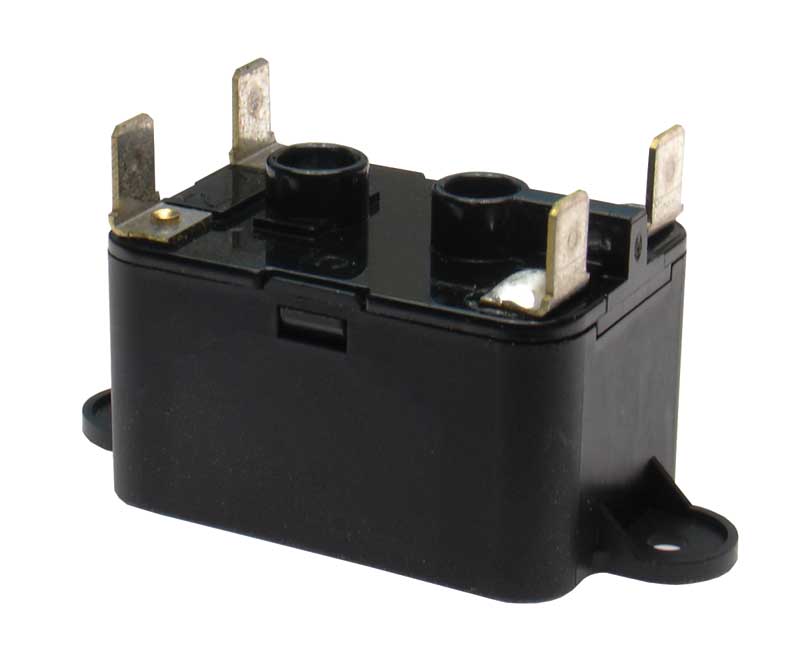

Relay - Sealed Case SPST-NO 24VAC Coil
Model #:
• HVAC Control Relay
• Sealed Case
• Contact Configuration: SPST
• Contact Bias: NO
• Coil Voltage (VAC): 24
• Coil Frequency (Hz): 50/60
• FLA at 120V (A): 12
• FLA at 230V (A): 8
• FLA at 277V (A): 7
• LRA at 120V (A): 60
• LRA at 230V (A): 48
• LRA at 277V (A): 42
• Terminal Connections: 1/4 in. Quick Connects
*Please note: We've done our best to identify the most similar products on the market that could cross to our quality Mainline product. The below products are not necessarily an exact match and could change at any time without warning.
•DIVERSITECH:D90-380
•GLOBAL:GFR-380
•MARS:90380
•PACKARD:PR380
•RHEEM/PROSTOCK:42-21571-08,42-25104-01,PD425117
•WHITE-RODGERS:90-380
