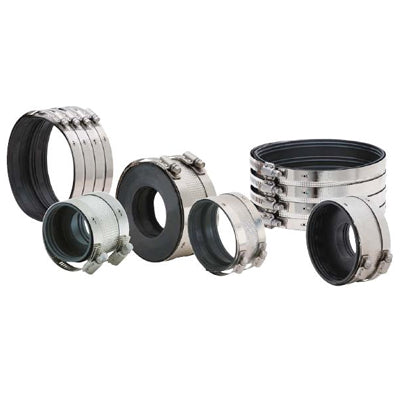

3" Heavy Duty HD No Hub Import Couplings
Model #:
• Imported
• Clamp: Type 310 stainless steel
• Screw: 3/8" hex head Type 305 stainless steel
• Torque: 80 inch-pounds
• Shield: 0.009" thick Type 310 patterned stainless steel bright annealed
• Gasket: High quality elastomeric compound (ASTM C-564)
• Compliance: Conforms to CISPI 310 & FM 1680 Complies with ASTM C1540 & C1277
• 1-1/2" through 4" couplings use four clamps
• 5" through 12" couplings use six clamps
• Imported
• Clamp: Type 310 stainless steel
• Screw: 3/8" hex head Type 305 stainless steel
• Torque: 80 inch-pounds
• Shield: 0.009" thick Type 310 patterned stainless steel bright annealed
• Gasket: High quality elastomeric compound (ASTM C-564)
• Compliance: Conforms to CISPI 310 & FM 1680 Complies with ASTM C1540 & C1277
• 1-1/2" through 4" couplings use four clamps
• 5" through 12" couplings use six clamps
