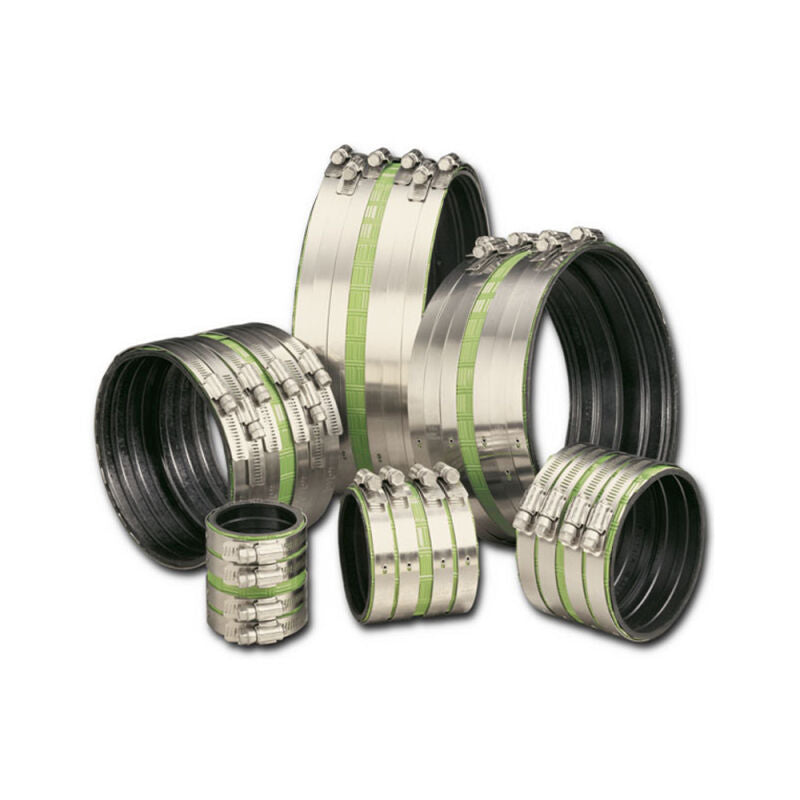

2" Heavy Duty HD No Hub Couplings
Model #:
• Made in the USA
• Clamp: Type 304 stainless steel
• Screw: 3/8" hex head Type 305 stainless steel
• Torque: 80 inch-pounds
• Shield: 0.008" thick type 301 corrugated stainless steel & green
• Gasket: High quality elastomeric compound (ASTM C-564)
• Compliance: Conforms to ASTM C1540
• 1-1/2" through 4" couplings use four clamps
• 5" through 10" couplings use six clamps
 |
Spec Sheet |
|
|
Installation Instructions/Parts/Warranty |
|
|
NHC Product Flyer |
|
|
Vendor Information (Permission Req’d) |
*Please note: We've done our best to identify the most similar products on the market that could cross to our quality Mainline product. The below products are not necessarily an exact match and could change at any time without warning.•ANACO/HUSKY:4006 •CLAMPALL:80020,81020 •EASYFLEX:EF-NHC-200HD •EVERFLOW:15200,15200CS •FERNCO:HD-22 •HYDRAPRO:HPNHCHD2 •IDEAL:6218H8G •JONES STEPHENS:HDNHC2 •MIFAB:MI-XHUB-2 •MISSION RUBBER:C200HW •PASCO:PNHC-2HD
